Deep Bed Borewell Sand Filter

200 INR/Piece

Get a Price/Quote

Product Details:

Voltage 220-240V
Equipment Type Sand Filter Unit
Control Type Manual/Automatic Valve (Model Dependent)
Power Rating 1-2 HP (Depends on pump selection)
Filter Media Graded Quartz Silica Sand
Mount Type Floor Mounted
Operating Temperature 5C - 50C
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Deep Bed Borewell Sand Filter Price And Quantity

Price 200 INR/Piece
Minimum Order Quantity 1 Piece

Deep Bed Borewell Sand Filter Product Specifications

Operating Temperature 5C - 50C
Application Water purification for borewell and tube well water
Mount Type Floor Mounted
Frequency 50 Hz
Type Deep Bed Borewell Sand Filter
Size Standard/Customizable
Material Mild Steel
Color Blue
Flow Rate 5 to 50 m/hr (Based on model)
Shape Cylindrical
Usage Groundwater Filtration
Equipment Type Sand Filter Unit
Voltage 220-240V
Filter Media Graded Quartz Silica Sand
Power Supply Electric
Control Type Manual/Automatic Valve (Model Dependent)
Power Rating 1-2 HP (Depends on pump selection)

Deep Bed Borewell Sand Filter Trade Information

Supply Ability 20000 Piece Per Day
Delivery Time 01 Days

Product Description

Specification

Brand	VCI
Value Connections	1 Inch
Max Temperature	50 degree celcius
Max Working Pressure	700kpa

Code	Model no	Filtration area(m2)	Value Connections		Max.flow rate		Sand (kg)
88012720	HD13300	0.07	1 inch	33mm	58.5lpm	3.51m3/h	75
88012720	HD13350	0.10	1 inch	33mm	68.3lpm	4.10m3/h	98
88012720	HD13400	0.13	1 inch	33mm	78.0lpm	4.68m3/h	130
88012720	HD15300	0.07	1 inch	33mm	53.3lpm	3.21m3/h	86
88012720	HD15350	0.10	1 inch	33mm	62.5lpm	3.75m3/h	118
88012720	HD15400	0.13	1 inch	33mm	71.5lpm	4.29m3/h	154

Efficient Groundwater Filtration

This sand filter is engineered to deliver dependable purification for borewell and tube well water. The graded quartz silica sand media, combined with a pebbles and coarse support layer, effectively removes impurities, delivering clean water for residential, agricultural, and industrial usage.

Durable and Safe Construction

Constructed with quality mild steel and protected by a corrosion-resistant epoxy coating externally and a food-grade epoxy lining internally, the unit ensures both longevity and safety. Its stationary, floor-mounted design enables stable operation whether installed indoors or outdoors.

Versatile Operation and Control

Featuring manual and automatic backwash options and available with either manual or automatic control valves (depending on the model), the filter system can be tailored for ease of maintenance and optimal efficiency. An electric power supply of 220-240V supports pumps from 1 to 2 HP, based on selection.

FAQs of Deep Bed Borewell Sand Filter:

Q: How does the Deep Bed Borewell Sand Filter operate for groundwater purification?

A: The filter works by passing groundwater through a graded bed of quartz silica sand, supported by pebbles and coarse media. Impurities are physically trapped, while clean water exits through the outlet. Backwash arrangements, either manual or automatic, allow for periodic cleaning of the filter media.

Q: What are the key advantages of the corrosion-resistant and food-grade epoxy coatings on this filter?

A: The external corrosion-resistant epoxy paint protects the steel body from environmental damage, ensuring durability. The internal food-grade epoxy coating maintains water safety by preventing contamination and leaching, making the filtered water suitable for drinking and process applications.

Q: When is backwashing required, and how is it performed?

A: Backwashing is necessary when the filter media becomes clogged with trapped impurities, typically after a certain operational period or decreased flow. The process can be done manually or automatically, depending on your model, by reversing water flow to expel accumulated contaminants and restore performance.

Q: Where can the Deep Bed Borewell Sand Filter be installed?

A: This filter is designed for versatility and can be placed indoors or outdoors, depending on site requirements. Its stationary, floor-mounted configuration allows for stable positioning in homes, farms, or industrial plants.

Q: What inlet and outlet sizes are available for this sand filter?

A: The unit supports a range of inlet and outlet sizes from 50 mm to 150 mm, accommodating different flow rates and installation needs. Sizes can be selected based on required water throughput and existing piping infrastructure.

Q: How does the filter benefit applications involving borewell or tube well water?

A: The filter efficiently removes suspended solids, sediments, and particulates from groundwater, making it suitable for domestic, agricultural, and industrial uses. Its high capacity and customizable options support varied demands, ensuring reliable water quality improvement.

Q: What standards and power specifications does this filtration unit comply with?

A: The filter is manufactured according to IS 12541-1988 standards, ensuring quality and safety compliance. It operates on a standard electric supply of 220-240V, with a pump power rating of 1 to 2 HP, based on model selection.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Borewell Deep Bed Sand Filters' category

Deep Bed Borewell Sand Filter Price : 200 INR/Piece Minimum Order Quantity : 1 Material : Other, Mild Steel / FRP / SS (as per requirement) Usage : Water Filtration, Borewell Water Purification Control Type : Other, Manual / SemiAutomatic Color : Blue / White Size : Standard sizes: 8 to 36 diameter; Custom sizes available Application : Other, Borewell, Groundwater, Industrial Water Treatment, Drinking Water Shape : Vertical Cylindrical Type : Other, Deep Bed Borewell Sand Filter Mount Type : Other, Floor Mounted Equipment Type : Other, Sand Filtration System Filter Media : Other, Graded Quartz Sand / Gravel Operating Temperature : 5C to 55C Flow Rate : 2 m/hr to 40 m/hr (depending on model)

Send Inquiry

SDB Series Side Mount Deep Bed Filter Price : 200 INR/Piece Minimum Order Quantity : 1 Material : Fiberglass Usage : Commercial Pool Filtration Control Type : Other, Manual Multiport Valve Color : Blue Size : Customizable sizes available Application : Other, Swimming Pools, Water Parks, Aquatic Centers Shape : Cylindrical Type : Other, Side Mount Deep Bed Filter Mount Type : Other, Side Mount Equipment Type : Other, Water Filter Filter Media : Other, High Grade Silica Sand Operating Temperature : Up to 50C Flow Rate : 10 to 40 m/h (depending on model)

Send Inquiry

Deep Bed Borewell Sand Filter Price : 15000.0 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel Usage : As Deep Bed Borewell Sand Filter Control Type : Manual Color : Grey Size : Standard Application : Pool Shape : Cylinderical Type : Other

Send Inquiry

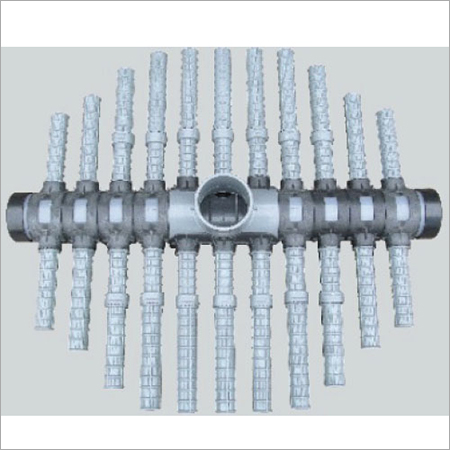

K Series Commercial Filter With Nozzles Laterals Price : 2000.0 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel Control Type : Manual Color : Grey Size : Standard Mount Type : Wall Mount Power Supply : Electric
