Deep Bed Borewell Sand Filter

200 INR/Piece

Get a Price/Quote

Product Details:

Filter Media Graded Quartz Sand / Gravel
Control Type Manual / Semi-Automatic
Operating Temperature 5C to 55C
Flow Rate 2 m/hr to 40 m/hr (depending on model)
Equipment Type Sand Filtration System
Mount Type Floor Mounted
Type Deep Bed Borewell Sand Filter
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Deep Bed Borewell Sand Filter Price And Quantity

Minimum Order Quantity 1 Piece
Price 200 INR/Piece

Deep Bed Borewell Sand Filter Product Specifications

Color Blue / White
Mount Type Floor Mounted
Equipment Type Sand Filtration System
Material Mild Steel / FRP / SS (as per requirement)
Flow Rate 2 m/hr to 40 m/hr (depending on model)
Size Standard sizes: 8 to 36 diameter; Custom sizes available
Type Deep Bed Borewell Sand Filter
Operating Temperature 5C to 55C
Control Type Manual / Semi-Automatic
Application Borewell, Groundwater, Industrial Water Treatment, Drinking Water
Shape Vertical Cylindrical
Usage Water Filtration, Borewell Water Purification
Filter Media Graded Quartz Sand / Gravel

Deep Bed Borewell Sand Filter Trade Information

Supply Ability 20000 Piece Per Day
Delivery Time 01 Days

Product Description

Specification

Brand	VCI
Value Connections	1 Inch
Max Temperature	50 degree celcius
Max Working Pressure	700kpa

Code	Model no	Filtration area(m2)	Value Connections		Max.flow rate		Sand (kg)
88012720	HD13300	0.07	1 inch	33mm	58.5lpm	3.51m3/h	75
88012720	HD13350	0.10	1 inch	33mm	68.3lpm	4.10m3/h	98
88012720	HD13400	0.13	1 inch	33mm	78.0lpm	4.68m3/h	130
88012720	HD15300	0.07	1 inch	33mm	53.3lpm	3.21m3/h	86
88012720	HD15350	0.10	1 inch	33mm	62.5lpm	3.75m3/h	118
88012720	HD15400	0.13	1 inch	33mm	71.5lpm	4.29m3/h	154

Optimized Water Purification Solution

Engineered to handle challenging water sources, the Deep Bed Borewell Sand Filter is effective for removing suspended solids and purifying water for drinking or industrial use. Its graded granular filter media ensures optimal filtration, making it an ideal fit for borewell and groundwater treatment across industrial and domestic sectors.

Versatile Construction and Durable Design

With vessels available in Mild Steel, FRP, or Stainless Steelcoated with epoxy paint or FRPthe filter guarantees resilience against corrosion, high pressure, and extreme temperatures. Its customizable design, including various end connections and vessel thicknesses, caters to specific client requirements and site conditions.

FAQs of Deep Bed Borewell Sand Filter:

Q: How does the Deep Bed Borewell Sand Filter operate?

A: This filter uses a deep bed of graded quartz sand and gravel to trap and remove suspended solids as water flows through the vessel. Backwash systems, available in manual or automatic configurations, help clean and restore the filter media efficiently.

Q: What are the main benefits of using this sand filter for borewell water purification?

A: The sand filter enhances water quality by removing particles up to 30 microns, reducing turbidity, and protecting downstream equipment. Its robust construction and efficient backwash system ensure minimal maintenance and long service life.

Q: When should the backwash facility be used?

A: The backwash process should be conducted when there is a noticeable increase in differential pressure across the filter or reduced flow rate, indicating the media is clogged with accumulated solids. Frequency depends on water quality and usage.

Q: Where can this sand filtration system be installed?

A: It is suitable for floor-mounted installations in industrial facilities, borewell sites, commercial buildings, or municipal water treatment plants across India, wherever effective water filtration is critical.

Q: What customization options are available for this filter?

A: Customers can choose vessel material (Mild Steel, FRP, or Stainless Steel), size (8"36" diameter or custom), inlet/outlet type (flanged or threaded), end connections (MS/FRP/SS nozzles), and external coatings (epoxy or FRP), ensuring the system fits their specific needs.

Q: How is the cleaning process carried out in this sand filter?

A: Cleaning is achieved via backwash, where water is reversed through the filter, dislodging trapped particles. The process can be manual or automated, making maintenance straightforward and efficient.

Q: What are the typical applications for this sand filtration system?

A: The filter is used in borewell, groundwater, industrial water treatment, and drinking water purification, providing reliable removal of suspended solids and improving overall water clarity and safety.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Borewell Deep Bed Sand Filters' category

Deep Bed Borewell Sand Filter Price : 200 INR/Piece Minimum Order Quantity : 1 Material : Other, Mild Steel Color : Blue Size : Standard/Customizable Control Type : Other, Manual/Automatic Valve (Model Dependent) Usage : Groundwater Filtration Type : Other, Deep Bed Borewell Sand Filter Shape : Cylindrical Application : Other, Water purification for borewell and tube well water Power Supply : Electric Mount Type : Other, Floor Mounted Equipment Type : Other, Sand Filter Unit Voltage : 220240V Flow Rate : 5 to 50 m/hr (Based on model) Operating Temperature : 5C 50C Filter Media : Other, Graded Quartz Silica Sand

Send Inquiry

SDB Series Side Mount Deep Bed Filter Price : 200 INR/Piece Minimum Order Quantity : 1 Material : Other, Fiberglass Reinforced Plastic (FRP) Color : Blue / White (standard) Size : 16 to 48 diameter options Control Type : Other, Manual Multiport Valve Usage : Water Filtration Type : Other, Side Mount Deep Bed Filter Shape : Cylindrical Application : Other, Swimming Pools, Water Parks, Aquatic Centres Power Supply : Not Applicable (manual operation) Mount Type : Other, Side Mount Equipment Type : Other, Swimming Pool Filtration Equipment Flow Rate : 6.2 m/h to 34 m/h (varies with model) Operating Temperature : Up to 50C Filter Media : Other, Silica Sand / Glass Media

Send Inquiry

Deep Bed Borewell Sand Filter Price : 15000.0 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel Color : Grey Size : Standard Control Type : Manual Usage : As Deep Bed Borewell Sand Filter Type : Other Shape : Cylinderical Application : Pool

Send Inquiry

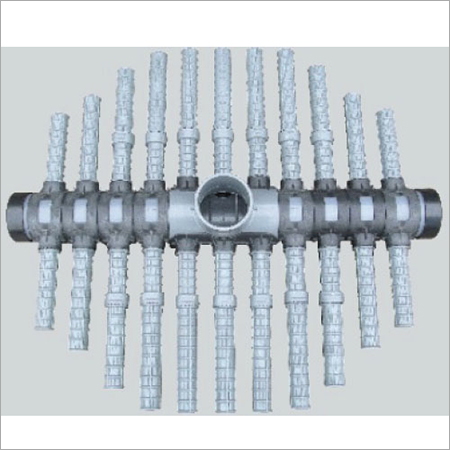

K Series Commercial Filter With Nozzles Laterals Price : 2000.0 INR/Piece Minimum Order Quantity : 1 Material : Stainless Steel Color : Grey Size : Standard Control Type : Manual Power Supply : Electric Mount Type : Wall Mount Voltage : 110215 Volt (v)
